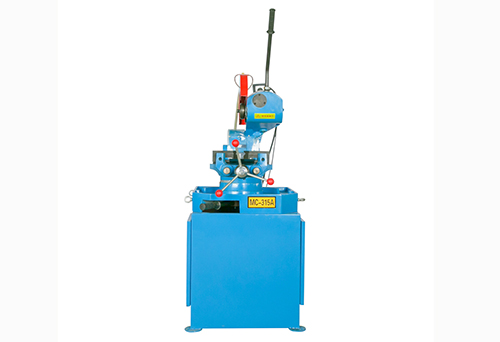

MC-315A manual cutting machine, configure the high-efficiency worm and turning, sawing rate is high, no noise, no flash. Feed, manually, the nose can turn around 45 °, the angle depicts a clear, easy to adjust, with a two-way clamp manual, automatic and hand-adjusting cooling system block size. No edges, no dust, accurate, fast and smooth.
Key Specifications | MC-315A | Notes | ||
| blade position | 90° (mm) | 45°(mm) | 1. Manual feeding, manual clamping, manual cutting | |
| □ | 80*80 | 60*60 | ||
| ○ | Φ90 | Φ70 | ||
| ● | Φ55 | Φ45 | ||
| ■ | 50*50 | 40*40 | ||
| Machine dimensions | 650mm x 900mmx 1700mm | |||
| Weight | 200kg | |||
Including：MC 275A/MC 275B
MC 315A/MC 315B
