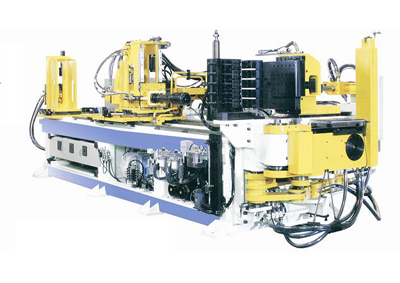

Key Specification | models:DW130CNCX2A-1S | Notes | |
maximum bending diameter × wall thickness | Φ130mm×8mm | 1. Minimum bending radius according to pipe diameter 2. Maximum bending radius according to customer requirements 3. Maximum core length of wear based on customer requirements | |
maximum bending radius | R400mm | ||
minimum bend radius | According to the diameter of the pipe | ||
maximum bending angle | 190° | ||
maximum feeding length | 3500mm | ||
Feeding method | direct delivery Pinch | ||
working speedd | Bending speed | Max 30°/s | |
Tube transfer speed | Max 160°/s | ||
Feeding speed | Max 800mm/s | ||
working precision | bending precision | ±0.15° | |
Rotary precision | ±0.1° | ||
feeding accuracy | ±0.1mm | ||
information input | 1. coordinates（X . Y. Z） 2．.work value（Y. B. C） | ||
bending mode | hydraulic pipe | ||
Rotary servo motor power | 2kw | ||
feeding servo motor power | 5kw | ||
elbow pipe to allow the number of | 1. 16（PLC type） 2. 33（Industrial computer type） | ||
feeding servo motor power | 1. 1000 sets（PLC type） 2. 2 million sets（Industrial computer type） | ||
hydraulic motor powe | 22kw | ||
system pressure | 14 Mpa | ||
machine siz | 6630 x 1860 x 1265mm | ||
Weight | 12000kg | ||
