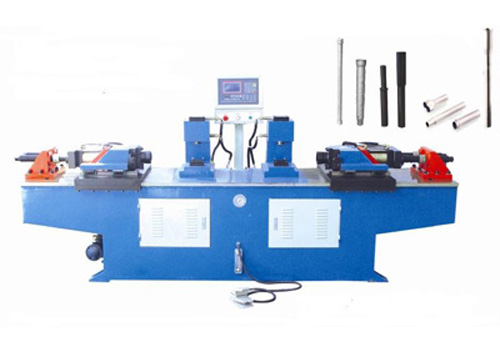

SM80NChydraulic automatic pipe end forming machine uses linear guide rails as carriers to ensure wear free operation and good product repeatability. It is suitable for end treatment of iron pipes, furniture, automotive air conditioning, fuel pipelines, etc.
| Key Specifications/Models | SM80NC | Notes | ||
| Maximum applicable pipe diameter x wall thickness | Φ80mm×2mm | 1. The maximum work schedule can be customized according to customer requirements ２. Double head center distance can be customized according to customer requirements | ||
| Maximum work schedule | 150mm | |||
| Double head center distance | 250mm | |||
| Hydraulic output | 12Mpa | |||
| working speed | 130mm in 5-6/s | |||
| Machine dimensions | 2900mm x 700mm x 1400mm | |||
| machine weight | 1600kg | |||
