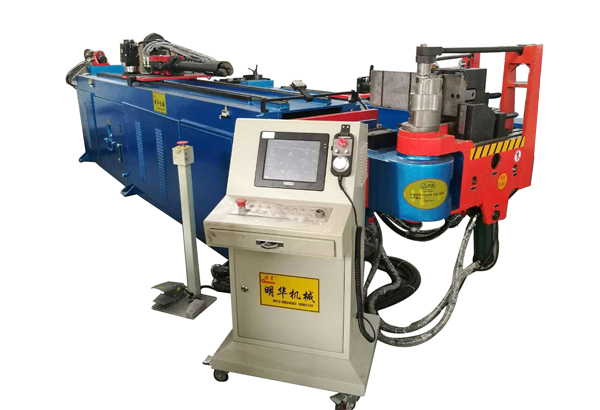

Key Specifications | models:1. DW63CNCX2A-1S 2. DW63CNCX3A-2S | Notes: | |
maximum bending diameter × wall thickness | Φ63mm×4mm | 1. Minimum bending radius according to pipe diameter 2. Maximum bending radius according to customer requirements 3. Maximum core length of wear based on customer requirements | |
maximum bending radius | R250mm | ||
minimum bend radius | According to the diameter of the pipe | ||
maximum bending angle | 190° | ||
maximum feeding length | 3000mm | ||
Feeding method | direct- pinch | ||
working speed | Bending speed | Max 85°/s | |
Tube transfer speed | Max 200°/s | ||
Feeding speed | Max 1000mm/s | ||
| working precision | bending precision | ±0.1° | |
Rotary precision | ±0.1° | ||
feeding accuracy | ±0.1mm | ||
information input | 1. coordinates（X . Y. Z） 2..work value（Y. B. C） | ||
bending mode | 1.Servo bend pipe: 7(Three or more axes) 2. hydraulic pipe | ||
Rotary servo motor power | 750w | ||
feeding servo motor powe | 1.5kw | ||
elbow pipe to allow the number of | 1. 16sets（PLC type） 2.33sets（Industrial computer type） | ||
feeding servo motor power | 1. 1000（PLC type） | ||
hydraulic motor power | 5.5kw | ||
system pressur | 12 Mpa | ||
machine size | 5200 x 1300 x 1560mm | ||
Weight | 3000kg | ||
