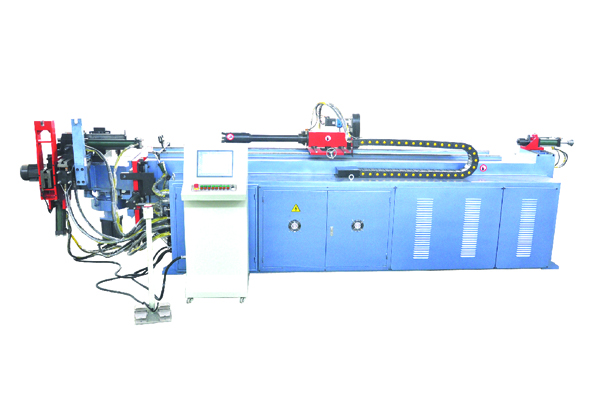

Minghua CNC pipe bending machine strives for excellence in control and has the following characteristics:

1. Electronic control system: using well-known Japanese controllers, such as servo drives, servo motors, positioning modules, CPUs, etc. produced by Mitsubishi Corporation, with strong performance and excellent stability.

2. Mitsubishi's ultra large PLC can accommodate 1000 sets of file editing. If it is insufficient, additional transmission software can be purchased and installed in the computer, and the files can be stored on the hard drive to infinitely expand the number of editing groups.

3. Industrial computer models are equipped with WINDOWS operating system and Mitsubishi servo system. In addition to the advantages of Mitsubishi drivers, there is also the convenience of file management in the WINDOWS operating system. Files can also be stored on hard drives or floppy disks, with unlimited expansion of editing groups (optional).

4. It has the function of detecting motion errors and faults, and displays them on the screen, making it easy for the operator to remove obstacles.

5. All processing data is inputted through a touch screen.

6. Each bent pipe can have compensation values, speeds, and demolding clearances set according to material changes.

7. Each bend of the same pipe can be individually programmed with multiple action sequences and 10 speed segments for the operator to use together. Improve work efficiency and reduce pipe interference points.

8. The touch screen can switch between Chinese and English. Other languages can also be ordered upon request.

9. The feeding method can be selected as direct feeding or pinch feeding according to different needs.

10. XYZ coordinates can be automatically converted into YBC machining values.

11. After the data is edited, it is protected by a key to prevent arbitrary modification.

12. The electronic control system is equipped with a heat exchanger for automatic heat dissipation. If needed, a CNC air conditioner can be purchased to ensure the lifespan of the electronic control system.

13. The machine can be equipped with an automatic oil injection system, which can reduce the friction of the bent pipe, improve the service life of the core rod, and ensure the quality of the bent pipe (optional)

14. Can connect to a printer to print out the information shown on the screen (optional).

15. The machine can be equipped with an address book interface and a data machine. Connected to Minghua Company through telephone lines, engineers perform remote control, real-time monitoring, software updates, and troubleshooting ... wait (optional).

16. The feeding position, safety position, mold interference position, and reverse mold interference position of the feeding trolley can be manually adjusted and automatically memorized to eliminate human measurement errors and machine collision losses.

17. The feeding axis will automatically detect before operation to avoid collision with the machine.

18. When bending pipes, decomposition actions can be used to observe interference points, modify actions, and improve efficiency.

19. The machine is equipped with an automatic lubrication system to protect its transmission components and improve its service life.

20. You can also choose a standalone control software to monitor device usage in the office.
