1、 Introduction

The product is controlled by PLC and driven by hydraulic pressure. The display operating system is a touch sensitive fully Chinese menu style, with various pre made bending angles, Chinese subtitle display, human-machine dialogue operation, and can freely choose manual, semi-automatic, or fully automatic operation modes. The mobile foot switch also has two functions: start and emergency stop.

The hydraulic system, control system, drive system, display system, etc. all use imported parts with high reliability, high precision, high efficiency, suitable for mass production, and have advanced international and domestic levels.

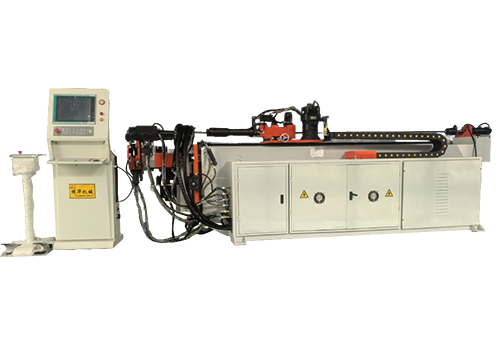

It belongs to the CNC fully automatic pipe bending machine and is equipped with a fully functional device for bending three-dimensional space pipe fittings. The entire pipe bending process is automatically completed by inputting the program. The whole machine has the characteristics of easy operation, stable performance, high work efficiency, and high safety factor, making it an ideal equipment for the pipe processing industry.

2、 Technical parameters

3、 Machine configuration
