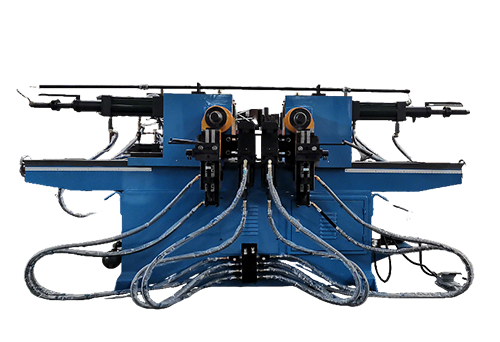

The SW38A high-speed double head bending machine uses NC control to simplify your operation and program design. Its special design allows for a 90 ° rotation inside and outside, making it particularly suitable for the processing and production of office furniture.
Key Specifications | Unit | models:SW38A | Notes |
maximum bending diameter × wall thickness | mm | Φ38×2 | 1. Minimum bending radius according to pipe diameter 2. Maximum bending radius according to customer requirements 3. Maximum core length of wear based on customer requirements |
maximum bending radius | mm | R200 | |
minimum bend radius | mm | R38 | |
maximum bending angle | Degree | 190 | |
maximum bending angle | mm | 170-1700 | |
| Control system | Microprocessor | ||
| Microprocessor | Mpa | 12 | |
| hydraulic system control | solenoid valve | ||
| solenoid valve | L | 120 | |
| Overall size | mm | 2300×600×1200 | |
| Machine weight | Kg | 850 | |
