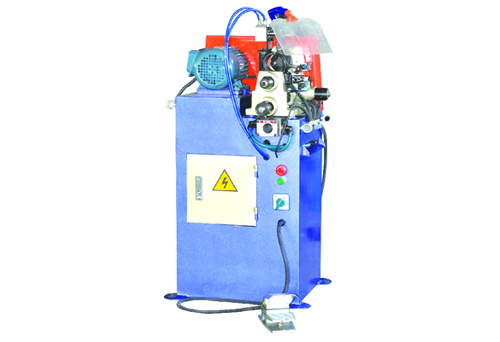

Mechanical characteristics
1. The clamping mold and cutting disc are precisely designed to ensure that the centerline of the added object and the cutting disc remains accurate and unchanged. Can one
Uniformly complete the processing of the outer and inner corners of the pipe end.
2. By utilizing the variation of the pulley, multiple rotational speeds can be converted to adapt to various metal materials of different materials, achieving the best results
Poor tool life.
3. The two-stage feed speed saves time, and the slow speed is easy to adjust, resulting in perfect processing.
| EF-PV/52 | EF-AC/80 | |
| host power | 0.75kw | 2.2kw |
| spindle speed | Choose the appropriate speed for the belt pulley based on the different materials being processed | |
| Processing the outer corners of round barsO.D | 9-52(mm) | 30-82(mm) |
| Processing the outer corners of round bars O.D | 9-25（mm） | 20-50（mm) |
| Use compressed air | 6-8KGS/cm2 | 6-8KGS/cm2 |
| 60ml/min | 120ml/min | |
| Standard | 1 mainframe, 2 One fixture, 3 One standard blade, 4 One set of blades | |
| Special accessories | 1. Fixtures of different sizes 2. Special tool holder and blade 3. Special blade head | |
