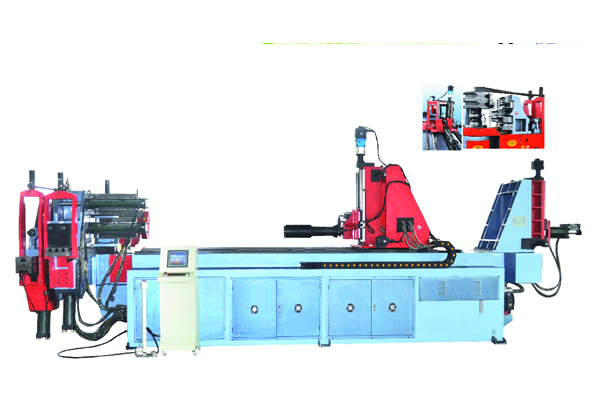

DW130CNC-7A-4S

Free consultation hotline：13921966366

Key Specifications		models: DW130CNC-7A-4S	Notes
maximum bending diameter × wall thickness		Φ130mm × 8mm	1. Minimum bending radius according to pipe diameter 2. Maximum bending radius according to customer requirements 3. Maximum core length of wear based on customer requirements
maximum bending radius		R400mm
minimum bend radius		R50mm
maximum bending angle		190 °
maximum feed length		3000mm
Feeding		direct- pinch
pace of work	bending speed	Max 30 ° /s
	Rotary speed	Max 160 ° /s
	feeding rate	Max 800mm /s
working precision	bending precision	± 0.15 °
	Rotary precision	± 0.1 °
	feeding accuracy	± 0.1mm
information input		1. coordinates (X. Y. Z) 2. work value (YB C)
bending mode		hydraulic pipe
Rotary servo motor power		2kw
feeding servo motor power		5kw
elbow pipe to allow the number of		1. 12 2. 33
parts store a few		1. 330 2. 125
hydraulic motor power		22kw
system pressure		12 Mpa
machine size		6115 x 1860 x 1265mm
Weight		8000kg
