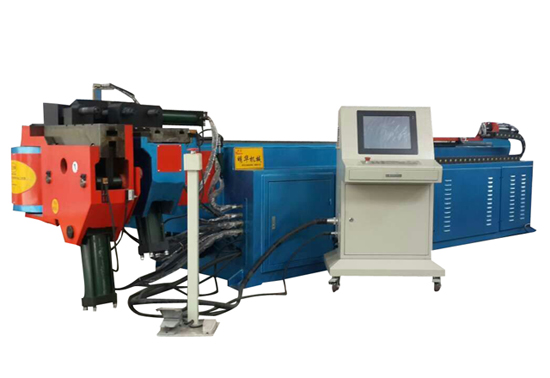

Key Specifications | models DW168CNC-2A-1S | Notes | |
maximum bending diameter × wall thicknes | Φ168mm×14mm | 1. Minimum bending radius according to pipe diameter 2. Maximum bending radius according to customer requirements 3. Maximum core length of wear based on customer requirements | |
maximum bending radiu | R500mm | ||
minimum bend radiu | R50mm | ||
maximum bending angle | 190° | ||
maximum feeding length | 3600mm | ||
Feeding method | direct delivery Pinch | ||
| Working speed | Bending speed | Max 25°/s | |
Tube transfer speed | Max 160°/s | ||
Feeding speed | Max 600mm/s | ||
| working precision | bending precisio | ±0.15° | |
bending precision | ±0.1° | ||
Feeding accuracy | ±0.1mm | ||
information input | 1. coordinates（X . Y. Z） | ||
bending mod | hydraulic pipe | ||
Rotary servo motor powe | 3.5kw | ||
feeding servo motor power | 5kw | ||
elbow pipe to allow the number of | 1. 12 2. 33 | ||
feeding servo motor power | 1. 330 2. 125 | ||
hydraulic motor power | 22kw | ||
system pressure | 14Mpa | ||
machine size | 8100 x 1955 x 1660mm | ||
Weight | 12000kg | ||
