1、 Introduction

The product is controlled by an industrial computer and servo driven. The display operating system is a touch sensitive full Chinese menu style, with various pre made bending angles, Chinese subtitle display, human-machine dialogue operation, and can freely choose manual, semi-automatic, or fully automatic operation modes. The mobile foot switch has both start and emergency stop functions.

The hydraulic system, control system, drive system, display system, etc. all use imported parts with high reliability, high precision, high efficiency, suitable for mass production, and have advanced international and domestic levels.

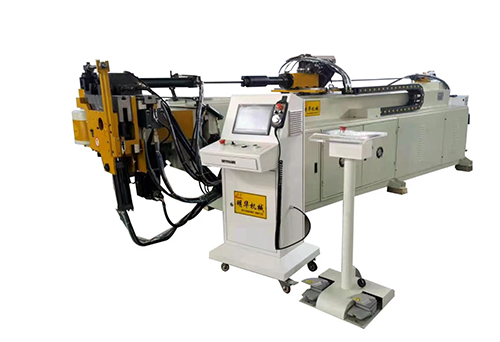

It belongs to the CNC fully automatic pipe bending machine and is equipped with a fully functional device for bending three-dimensional space pipe fittings. The entire pipe bending process is automatically completed by inputting the program. The whole machine has the characteristics of easy operation, stable performance, high work efficiency, and high safety factor, making it an ideal equipment for the pipe processing industry.

2、 Technical parameters

3、 Machine configuration
