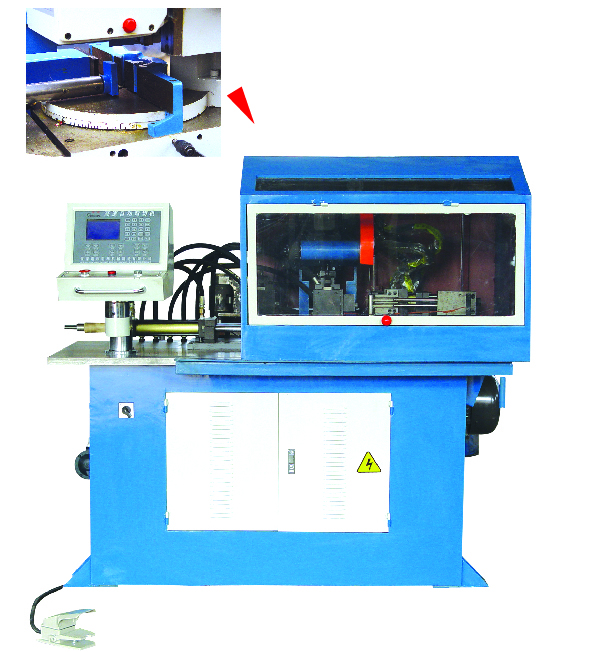

QDW38 automatic forming machine U-tube automatic forming machine is a specialized equipment for making U-bend pipes from copper tubes on the heat exchanger generation line. This device can automatically and continuously complete actions such as feeding, clamping, bending, cutting, and unloading.
Main Features
1. Adopting microcomputer control, with two operation functions of automatic and manual control;
2. Each workpiece cycle can simultaneously process one to two workpieces;
3. By installing relevant components, U-shaped pipes of different specifications can be bent.
(Note: When supplying this machine, only one specification of machined parts will be provided according to the contract. If customers need to bend more than one specification, they must order additional accessories separately.)
Specifications | QDW38 |
| Processing copper pipe specifications | ≤Φ38×1.5 |
| Bending angle | 90° |
| Simultaneously bending the number of workpieces | 1-2 |
| Processing cycle time | About 5-8 times/minute |
| Overall total mass | 1300kg |
| Overall dimensions of the machine (length x width x height) | 1700 x 1150 x 1650 |
