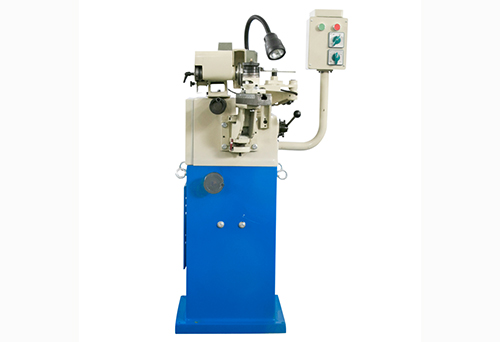

Mechanical characteristics:
This machine is easy to operate and can easily adjust the cutting angle, tooth shape, and tooth depth of the saw teeth. It has high precision, sharpness, and durability.
According to the different thicknesses of the grinding saw blade, it can be quickly adjusted.
The machine head can be adjusted upwards or downwards freely, and chamfering can be done without changing the grinding wheel.
Specifications | SG-450 |
| Outer diameter of circular saw blade | Φ50mm-Φ450mm |
| Tooth Pitch | 25mm |
| Tooth Depth | Deepest 8mm |
| Cutting Angle | ﹣5°- 30° |
| Feeding Speed | 45-180 teeth/ minute |
| Blade thickness | 8mm |
| Outer diameter of grinding wheel | Φ75mm-Φ150mm |
| Wheel Speed | 4200RPM(60HZ) |
| Rotating Motor | 1/2HP |
| Grinding wheel motor | 3/4HP |
| Machine Dimensions | 1300mm x 750mm x 700mm |
| Machine Weight | 130kgs |
