F-AC/80 detailed introduction:

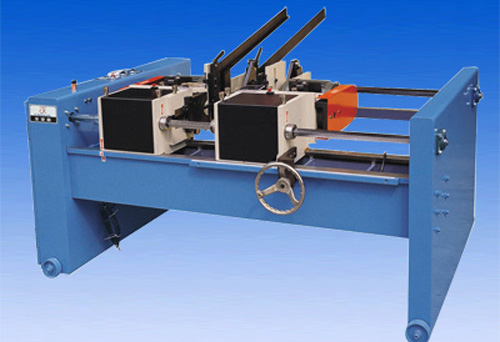

DEF-FA/52 semi-automatic precision chamfering machine, manual feeding, automatic clamp, automatic advance and retreat machine
Machine features
1. The clamping mold and cutting disc are ingeniously designed to uniformly complete the processing of the inner and outer corners of the pipe end and the pipe end in one go
2. By utilizing the variation of the pulley, multiple rotational speeds can be converted to adapt to metal materials of different materials
3. Easy to adjust feed speed
Specification | DEF-FA/52 |
| host motor | Processing generally iron pipe 2KW x 1.5P Processing of aluminum or bronze pipe 2 x 1.5/1.0kw, 2/4P Processing stainless steel pipes 2 x 1/0.75kw, 4 /8 P |
| Use Segment | standard blade for pipe 3 /8 '-2' OD |
| working length | A. Standard: 150mm-1000mm B. Standard: 150mm-1500mm C. Standard: 150mm-2000mm |
| intermediate transmission station (BTM) | # 1) Φ12- Φ26mm # 2) Φ18- Φ32mm # 3) Φ 22 - Φ46mm # 4) Φ40- Φ57mm |
| use compressed air | 0.6-0.8Mpa,120ml/min |
| machine size | DEF-FA/52 Rack type 225 x 120 x 160 DEF-FA/52 + BTM: 225 x 220 x 160 |
| Weight | DEF-FA/52 Rack type 1250 kg DEF-FA/52 + BTM: 1400kg |
