TM60NC-1H-2S
TM60NC-1H-2S

TM60NC-1H-2S

  • classification:Single Head Pipe End Forming Machine
  • Release Date:2025-08-26
Free consultation hotline:13921966366
  • parameter
  • video
  • albums

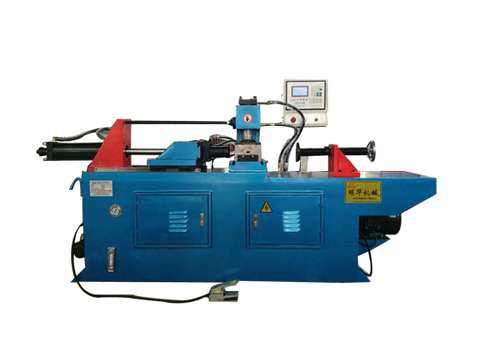

TM60NC hydraulic automatic pipe end forming machine uses linear guide rails as carriers to ensure wear free operation and good product repeatability. It is suitable for end treatment of iron pipes, furniture, automotive air conditioning, fuel pipelines, etc


Key Specifications/ModelsTM60NC-1H-2SNotes
Maximum applicable pipe diameter x wall thicknessΦ60mm×2mm1. The maximum work schedule can be customized according to customer requirements
Maximum work schedule130mm
Hydraulic output12Mpa
working speed100mm in 3-4/s
Machine dimensions2000mm x 600mm x 1400mm
machine weight1250kg
