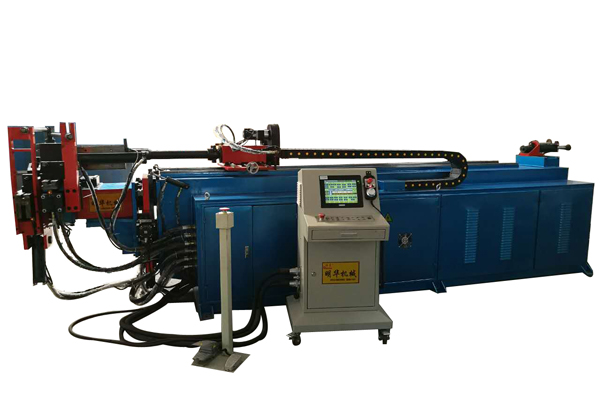

Key Specification | models:DW50CNC-3A-3S | Notes | |
maximum bending diameter × wall thickness | Φ50mm×3mm | 1. Minimum bending radius according to pipe diameter 2. Maximum bending radius according to customer requirements 3. Maximum core length of wear based on customer requiremen | |
maximum bending radius | R250mm | ||
maximum bending radius | According to the diameter of the pipe | ||
maximum bending angle | 190° | ||
maximum feeding length | 3000mm | ||
Feeding method | direct- pinch | ||
working speed | Bending speed | Max 85°/s | |
Tube transfer speed | Max 200°/s | ||
Feeding speed | Max 1000mm/s | ||
working precision | bending precision | ±0.1° | |
Rotary precisin | ±0.1° | ||
Rotary precision | ±0.1mm | ||
information input | 1. coordinates（X . Y. Z） 2.work value（Y. B. C） | ||
bending mode | 1.Servo bend pipe: 7(Three or more axes) 2. bending mode | ||
Rotary servo motor power | 750w | ||
feeding servo motor power | 1.5kw | ||
elbow pipe to allow the number of | 1. 16sets（PLC type） 2.33sets（Industrial computer type） | ||
feeding servo motor power | 1. 1000（PLC type） 2. 2 million sets（Industrial computer type） | ||
hydraulic motor power | 6.5kw | ||
system pressure | 12 Mpa | ||
machine size | 5000 x 1300 x 1500mm | ||
Weight | 2500kg | ||
