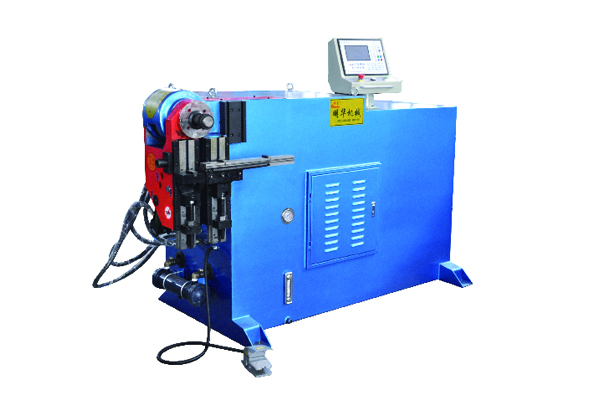

DW50NC high-speed single head hydraulic pipe bending machine, using NC control, multiple programs, and multiple angle settings, makes your operation simple and convenient.
Key Specifications | Unit | Models：DW50NC | Notes |
maximum bending diameter × wall thicknes | mm | Φ50×3 | 1. Minimum bending radius according to pipe diameter 2. Maximum bending radius according to customer requirements 3. Maximum core length of wear based on customer requirements |
maximum bending radius | mm | R350 | |
minimum bend radius | mm | According to the diameter of the pipe | |
maximum bending angle | Degree | 190 | |
standard straight-length | mm | 2200 | |
control system | control system | ||
elbow pipe to allow the number of | Unit | 16 | |
| Number of parts that can be stored | Unit | 16×16 | |
hydraulic motor power | KW | 5.5 | |
system pressure | Mpa | 12 | |
hydraulic system control | solenoid valve | ||
tank capacity | L | 150 | |
Overall size | mm | 3000×700×1030 | |
machine weight | Kg | 1220 |
