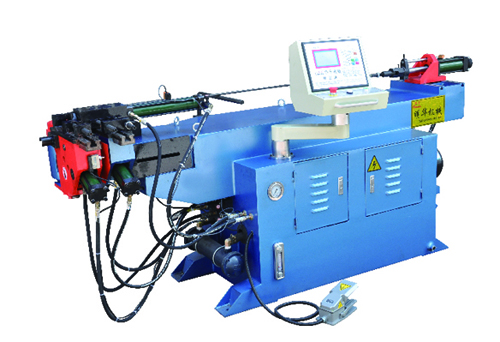

The DW38NC high-speed single-head hydraulic pipe bending machine boasts fast bending speed, utilizes NC control, offers multiple programs, and supports multi-angle settings, making your operation simple and convenient,
It is widely used in the processing of exhaust pipes, seats, furniture, and other tubular materials.
| Main specifications | unit | Model type：DW38NC | Remarks |
| Maximum bending pipe diameter × wall thickness | mm | Φ38×2 | 1. The minimum bending radius depends on the diameter of the pipe 2. The maximum bending radius can be adjusted according to customer requirements 3. The maximum core insertion length can be customized according to customer requirements |
| Maximum bending radius | mm | R260 | |
| Minimum bending radius | mm | according to the pipe diameter | |
| Maximum bending angle | Degree | 190 | |
| Standard core length | mm | 1600 | |
| control system | microcomputer control | ||
| Number of bends allowed for pipe fittings | Unit | 16 | |
| Number of storable parts | Unit | 16×16 | |
| Hydraulic motor power | KW | 4 | |
| Maximum system pressure | Mpa | 12 | |
| Hydraulic system control | solenoid valve | ||
| Fuel tank capacity | L | 110 | |
| Overall dimensions of machine tool | mm | 2600×600×1000 | |
| machine tool weight | Kg | 750 |
